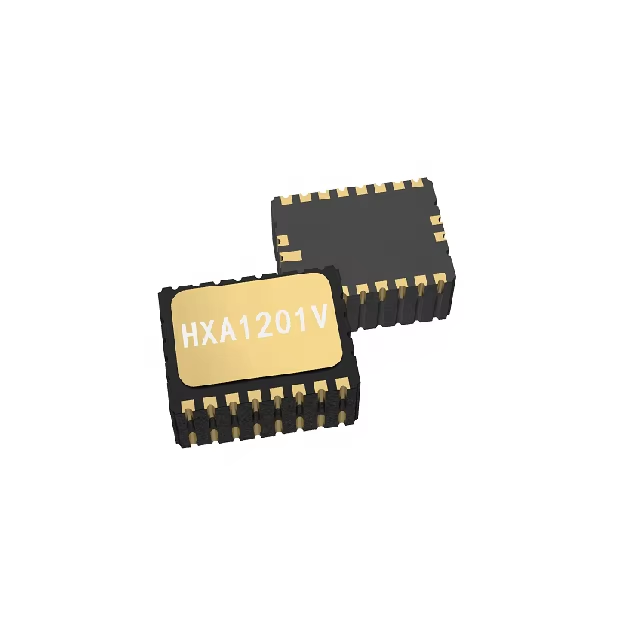

HXA1201V X-Axis MEMS Accelerometer

HXA1201V is a high-performance X-axis MEMS accelerometer, supporting ±10g full-scale output. The output acceleration data is in 24-bit binary complement format and can be accessed through an SPI digital compatible interface. The HXA1201V can achieve precise acceleration measurement under complex working conditions, making it suitable for applications such as attitude measurement and vibration monitoring.

SKU HXA1201V Category MEMS Accelerometer Tags Accelerometer, MEMS

Description

MEMS Accelerometer

Specifications

Sensitive axis	X-axis (parallel to device packaging)
Range	± 10g
Bandwidth (3dB)	100Hz
Zero bias instability	20 ug (10 smooth, 1σ)
Scale factor nonlinearity	300ppm
Typical working current	10mA
Digital output interface	Compatible with SPI
Temperature sensor	Integrated temperature sensor
Working voltage range	4.75~5.25 V
Working temperature range	-40°C ~ +125°C
LCC package -48 pins	7.8 x 5.8 x 3 mm
Impact resistance (charged)	10000g
