MRS-01 Electronic Compass

The MRS-01 Electronic Compass is composed of highly reliable industrial-grade microcontrollers, high-precision magnetometers, and drive chips. It integrates hard-iron and soft-iron interference compensation technologies. The XY-MRS-01 is characterized by its compact size and low power consumption, making it suitable for modern miniaturized measurement systems. It is widely used in various fields such as antenna stabilization, vehicles, and system integration.

SKU MRS-01 Category Electronic Compass Tags Digital compass, Electronic compass, Magnetometer

Description

Electronic Compass

Compass Heading Parameters	Measurement Range	0～360° (0° is the geomagnetic south pole)
	Heading Accuracy	1°
	Resolution	0.1°
	Repeatability	1°
Calibration	Hard-Iron Calibration	Yes
Calibration	Soft-Iron Calibration	Yes
Physical Characteristics	Dimensions	47.2mm × 31.2mm × 12.5mm
Physical Characteristics	Weight	<50g
Interface Characteristics	Startup Delay	<50ms
	Maximum Sampling Rate	20 SPS (Samples per Second)
	Communication Rate	2400～19200bps (default 9600bps)
Power Supply	Supply Voltage	+5VDC
Power Supply	Supply Current	50mA
Environment	Storage Temperature	-40℃～+125℃
	Operating Temperature	-40℃～+85℃
	Shock Resistance	2500g

Application

Ship navigation and heading maintenance
Automatic navigation of unmanned vessels (USVs)
Marine surveying and exploration positioning

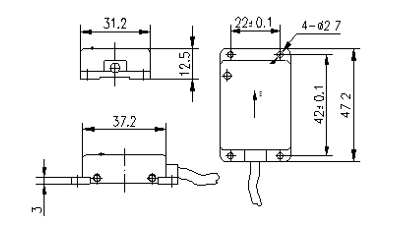

Diagram
