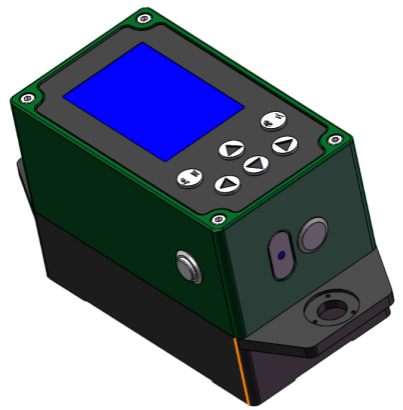

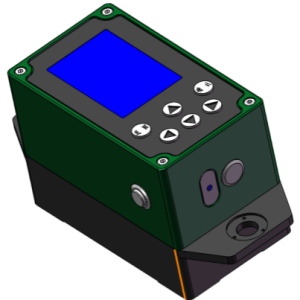

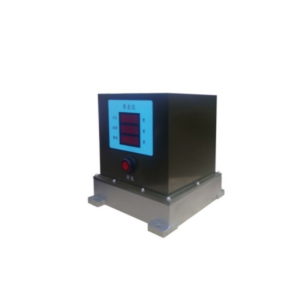

The HX-ATTI-01 north finder (hereinafter referred to as the north seeking device) is primarily used to determine the azimuth and inclination angles of the derrick frame. It provides an azimuth reference through north-seeking, followed by attitude measurement at specified positions, thereby obtaining the azimuth and inclination angles at those locations.
Specifications
| Items | Unit | HX-ATTI-01 | HX-ATTI-02 |
| Communication method | Screen display/mobile app/upper computer software RS485/Bluetooth | RS422/RS232 | |
| Connector | EGG-0K-7 | EGG-0K-7 | |
| Power consumption (with laser indication) | W | ≤1.5 | / |
| Power consumption (without laser indication) | W | ≤1 | ≤1 |
| Power supply | V | Comes with explosion-proof battery that can standby for 18 hours | DC9V~26VDC |
| OperatingTemperature | ℃ | 0~+40 | -40~+60 |
| North searchtime | min | 3 | 3 |
| North findingaccuracy | ° | ±0.5 | ±0.5 |
| Pitch angleaccuracy | ° | ±0.1 | ±0.1 |
| Roll angleaccuracy | ° | ±0.1 | ±0.1 |
| Tilt adaptability | ° | ±15 | ±15 |
| Pressure altitude | m | \ | \ |
| Overall dimensions | mm | 150*80*105 | 80*80*80 |
| Weight | g | ≤1500 | ≤400 |
| Accuracy of heading angle tracking measurement | ° | 0.5(5min) | 0.5(5min) |
| Pitch angle tracking measurement accuracy | ° | 0.5(5min) | 0.5(5min) |
| Rolling angle tracking measurement accuracy | ° | 0.5(5min) | 0.5(5min) |
| Optional configuration | Ma certification, intrinsic safety type | Ma certification, intrinsic safety type | |
| IP rating | IP65 | IP65 |
Applications
- Ship orientation application
- Vehicle directional application
- Directional application of underground openings
