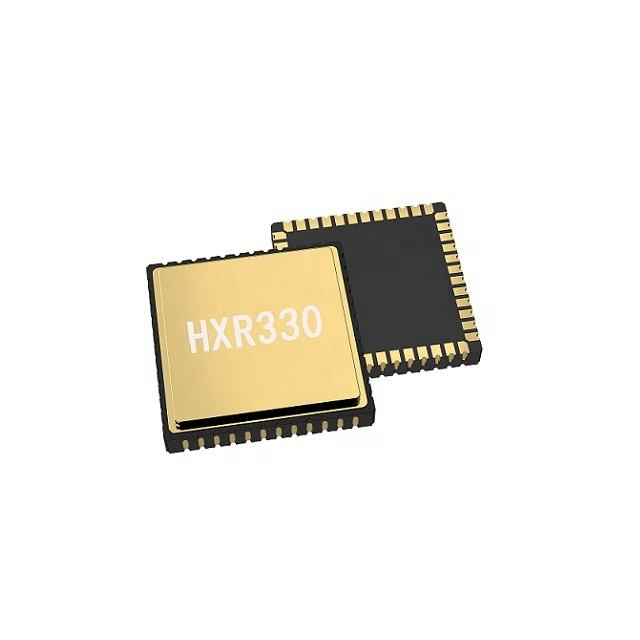

HXR330 Z-axis MEMS Gyroscope

HXR330 is a high-performance Z-axis angular rate sensor (gyroscope). Supports ± 100°/s full scale output performance and zero bias instability below 0.1°/hr. The output angular rate data is in 24-bit binary complement format and can be accessed through the SPI digital compatibility interface.

HXR330 can achieve accurate angular rate measurement in high vibration environments, suitable for applications such as inertial navigation, attitude measurement, and platform stability control.

SKU HXR330 Category MEMS Gyroscope Tags Gyroscope, MEMS

Description

MEMS Gyroscope

Specifications

Sensitive axis	Z-axis (perpendicular to the device packaging)
Range	±100°/s
Bandwidth (3dB)	12Hz
Zero bias instability	< 0.1°/hr (Allan variance, room temperature)
Scale factor nonlinearity	200ppm
Typical working current	40mA
Digital output interface	Compatible with SPI
Temperature sensor	Integrated temperature sensor
Working voltage range	4.75~5.25 V
Working temperature range	-40°C ~ +125°C
LCC package -48 pins	11 x 11 x 1.5 mm
Impact resistance (non charged)	20000g
Impact resistance (charged)	500g
