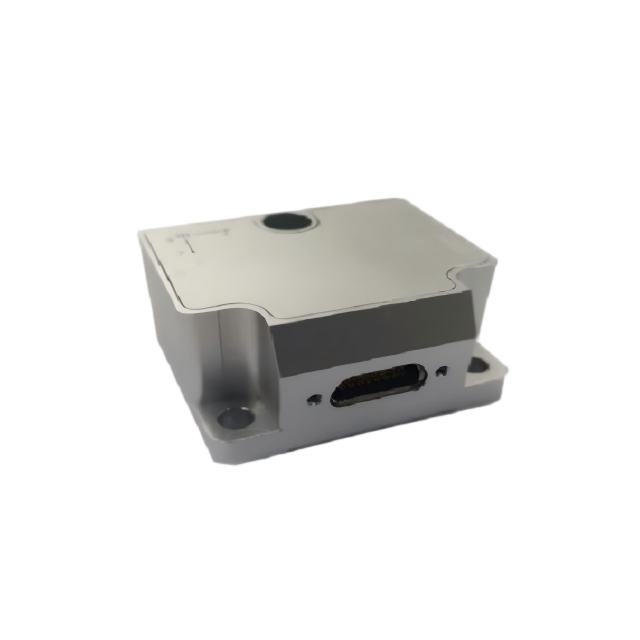

HXT-ME86X MEMS Integrated Navigation System

MEMS Integrated Navigation System
  • Wide applicability: In addition to being suitable for use in open areas, it is also suitable for complex environments such as indoor, street, jungle, underground, and underwater.
  • Strong adaptability: Silicon micro MEMS devices have strong resistance to vibration and impact, operating at full temperature from -40℃ to+85℃.
  • Excellent performance indicators: high accuracy, small size, and light weight.
  • Good user experience: Supports multiple serial ports such as RS-422, RS-232, and CAN, supports output bandwidth, adjustable protocols, and supports online uploading of programs/parameters.
  • An extremely low noise gyroscope with a maximum output frequency of 200Hz.
Category Tags , , ,

The HXT-ME86X MEMS integrated navigation system is a combination navigation system with an external satellite receiving module. It uses high-precision domestic gyroscopes and accelerometers to measure information such as attitude, heading, speed, and position. The system integrates multiple sensors such as gyroscopes, accelerometers, magnetic compasses, temperature sensors, barometers, etc. It adopts a high-performance small volume MCU and can access external auxiliary information such as satellite receivers and odometers. In the most challenging environments, it can provide excellent posture and navigation data. This series of products can replace foreign equivalent performance products, replace some fiber optic gyroscope type integrated navigation products, and provide customized services according to user needs.



Specifications

Indicators Unit HXT-ME862 HXT-ME863 HXT-ME867
Measurement accuracy Roll and pitch ° ≤0.05 ≤0.05 ≤0.03
Heading accuracy
(magnetic mode)		 ° ≤0.5 ≤0.5 ≤0.5
Heading accuracy maintenance (pure inertial mode) °/h 4 3 0.3
Gyroscope Measuring range °/s 500
(customized)		 500
(customized)		 400
(customized)
Zero bias stability
(Allen Curve, 1σ)		 °/h ≤0.5 ≤0.5 ≤0.03
Zero bias stability
(10s smoothing, 1σ)		 °/h ≤3 ≤2 ≤0.3
Accelerometer Measuring range g 20(customized)
Zero bias stability (10s) ug 100 30 30
Interface information Communication interface – RS232/CAN or RS422/CAN
Mechanical parameters Size mm 44.8×38.6×23.5(13.5)
Weight g 55±3
Electrical and Environmental Working temperature ℃ -40~+85
Storage temperature ℃ -55~+85
Working voltage V 4.5~5.5(Typical 5V)
Power consumption W <2
Impact limit g Charged, 500
Vibration – 12g, RMS
MTBF h 50,000



Applications

  • Aviation: Flight carriers such as drones and airships.
  • Navigation: Ships, unmanned surface vehicles, buoys, oil platforms, and other water-based carriers.
  • Land: Autonomous vehicles, special vehicles, robots and other carriers.
